Garmin Chartplotter Lineup: STRIKER, ECHOMAP, and GPSMAP Explained
Garmin’s marine catalog looks like alphabet soup until you realize it’s really just three families, each aimed at a different boat and budget. Once you know which family you’re shopping in, picking a model inside it gets a lot easier. This is the map; the general buying-guide fundamentals — transducer power, CHIRP, NMEA 2000 — still apply no matter which family you land in.

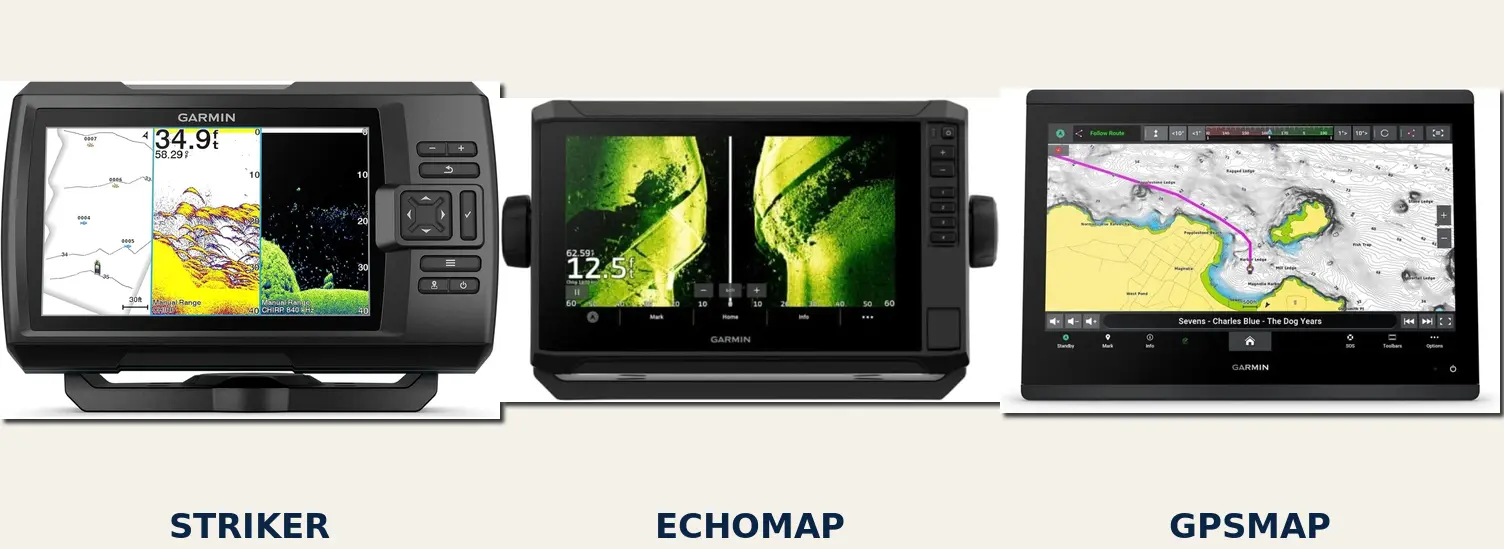

The three families, at a glance
STRIKER is the entry tier: small displays, keyed buttons, GPS plus CHIRP sonar, and prices that start under $150. It’s built for kayaks, jon boats, and anyone who wants real sonar without a real budget.
ECHOMAP is the middle tier: sunlight-readable touchscreens (with keyed assist backup) that add proper chartplotting and better sonar processing to the STRIKER formula. It’s the sweet spot for bay boats and inshore/nearshore center consoles that want a genuine chartplotter without GPSMAP money.
GPSMAP is the top tier: the highest resolution, the deepest NMEA 2000 networking, radar support, and the hardware serious offshore boats build their whole helm around. It’s also the only family that scales all the way up to 27-inch glass-bridge displays on sportfish boats and yachts.
What actually sets them apart: networking, transducers, and inputs
The screen size and price are the obvious differences. The real dividing lines are underneath — what the unit can talk to, and what you can plug into it.
| STRIKER | ECHOMAP (UHD2 / Ultra 2) | GPSMAP (x3 and up) | |
|---|---|---|---|
| Networking | NMEA 0183 only — basic GPS/waypoint sharing | NMEA 2000 only (no 0183 port) — autopilot, digital switching, VHF/AIS data | Both NMEA 2000 and NMEA 0183, plus the full Garmin Marine Network |
| Radar | Not supported | Not supported at any size | Fully supported over the Garmin Marine Network |
| Sonar modules (Panoptix LiveScope, etc.) | Not supported — fixed built-in sonar only | Supported — the network port is sonar-module-specific | Fully supported, same network port also runs radar and cameras |
| Transducer | Fixed GT-series unit bundled with the display (commonly the GT20-TM), simple 4- or 8-pin connector | Model-specific bundled GT-series transducer (e.g., GT56UHD-TM), swappable within the compatible connector family | Broadest compatibility — GT-series, Panoptix LiveScope/LiveScope 2, and professional-grade transducers |
| Video/camera input | No | No | Yes, over NMEA 0183/2000 |
| Wi-Fi / app pairing | Yes on Plus and Vivid models, for ActiveCaptain | Built-in, for unit-to-unit sharing and ActiveCaptain | Built-in, same plus full network device list access |
The practical read: STRIKER’s NMEA 0183-only networking means it’s basically an island — it shares GPS data and not much else. ECHOMAP’s NMEA 2000 gets it talking to an autopilot or sharing AIS targets, and it can run a Panoptix LiveScope transducer for forward-facing sonar, but the moment you want radar on the same screen, ECHOMAP can’t do it — that port is locked to sonar accessories only. GPSMAP is the only family with both NMEA protocols and the unrestricted Garmin Marine Network port, which is what lets one screen run chartplotting, radar, sonar, and a camera feed simultaneously. If your boat’s electronics plan stops at “GPS and a fishfinder,” that difference won’t matter. If it includes radar, an autopilot, or LiveScope down the road, it decides which family you can even consider. If none of this networking terminology is familiar, the boat networking overview breaks down what NMEA 0183, NMEA 2000, and the Garmin Marine Network/BlueNet layer each actually do. Once you’ve picked a family, the transducer buying guide covers matching the actual sensor to your boat and target depths.
Which one is actually for your boat
If you’re fishing from a kayak, a jon boat, or want a simple backup unit for cheap, start with STRIKER — the full STRIKER breakdown covers Cast, Plus, and Vivid and where each earns its keep.
If you’re running a bay boat or a center console doing inshore and nearshore work and want a real chartplotter without spending GPSMAP money, ECHOMAP is the right family — see the UHD2 vs. Ultra 2 comparison for which size and sonar package fits.
If you’re running real offshore miles, need radar, autopilot, or trolling motor integration, or you’re building a helm that has to last a decade of saltwater use, GPSMAP is where you want to be — the GPSMAP series breakdown covers everything from the 7x3 up through the 27-inch 9000-series glass helm.
What I actually run
Twin Garmin 1243xsv units at my helm — the previous generation of what’s now the GPSMAP x3 series. The naming has changed (a 1243xsv is functionally what a 12x3 is today), but the reasoning hasn’t: GPSMAP is the family that talks to everything else on the boat over NMEA 2000, including the Force Kraken trolling motor for spot-lock over structure, and the MSC 10 satellite compass feeding the autopilot. That ecosystem integration is the real reason to pay GPSMAP prices — not just the bigger screen.
Bottom line
STRIKER gets you fishing with real sonar for cheap. ECHOMAP gets you a genuine chartplotter at a fair price. GPSMAP gets you the networked, expandable system a serious offshore boat is built around. Pick the family based on what your boat actually does, then use the dedicated breakdowns to pick the size and sonar package inside it.
